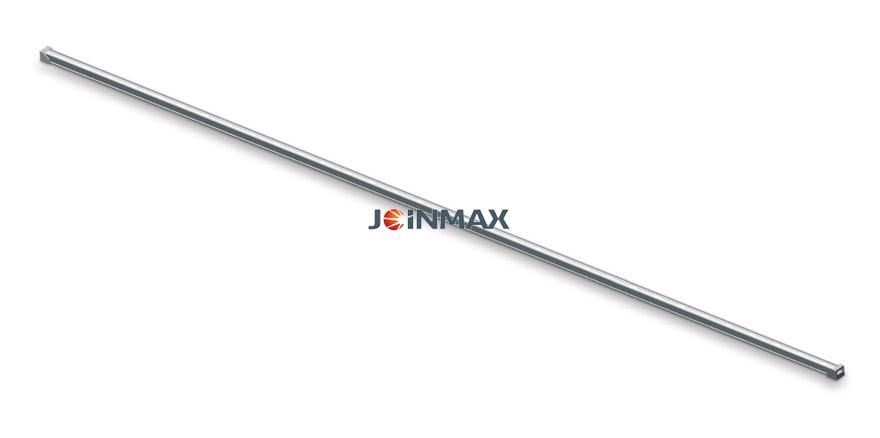

1.The lamp is made from high-quality aluminum allay with clear line, compact structure, elegant lamp and convenient installation.
2.The lamp is super lean and thin, suitable for special architecture
3.The surface of the lamp has been eelectrostatic sprayed and oxidize the positive anode with good temperature endurance and good endurance.
4.With epoxy resin to fill the lamp and seal the main board inside to assure waterproof
5.Ultra-brightness LED as light source and lighten the lamp
6.Multiple dynamic demonstration with red, yellow, white ,purple, orange, green and blue, consistently adjustable control
7.The lamp could be installed separately or combined.
8.The structure of the lamp totally accord to the electricity appliance safety: the standard criteria of EN60958 GB7000
9.Electric-shock protection: Category three

技術分類 Technical Classification	項目規格 Item	參數 Parameter
電氣性能 Electrical Properties	供電電壓 Input voltage	DC24V
	?最大功耗 Max Power Consumption	2.5W/5.0W/7.2W
光學性能 Optical Properties ? ?	光源組成 LED composition	36、42、84顆LED燈珠 36/42/84 LED lamp
	光色 LED Color	白色/單色 White/single
	光通量 Luminous flux	225lm/430lm/612lm
	光束角 Beam Angle	60°
	光通維持率 Luminous maintenance rate	30000 hour（@85%）
控制方式 Control Mode	控制接口 Interface	防水接頭 Waterproof connector
	控制系統 Control System	中鳴科技 Easyplay5.0 (Joinmax)
結構性能 Structure	尺寸(長x寬x高) Dimension (L*W*H)	1000X12X12（mm）
	重量 Weight	350g,500g,720g
	燈體材料 Material	壓鑄鋁成型 Die-casting aluminum
	表面顏色 Surface Color	銀灰色 Grey
	燈具連接 Connection	公母接頭 Connectors
	防護等級 Protection Rating	IP65
	工作溫度 Work Temperature	-20℃～50℃
	工作濕度 Work Humidity	0～90%
	使用環境 Work Environment	-20°C- 40°C
