- Functional Description
- Specifications
- Applications

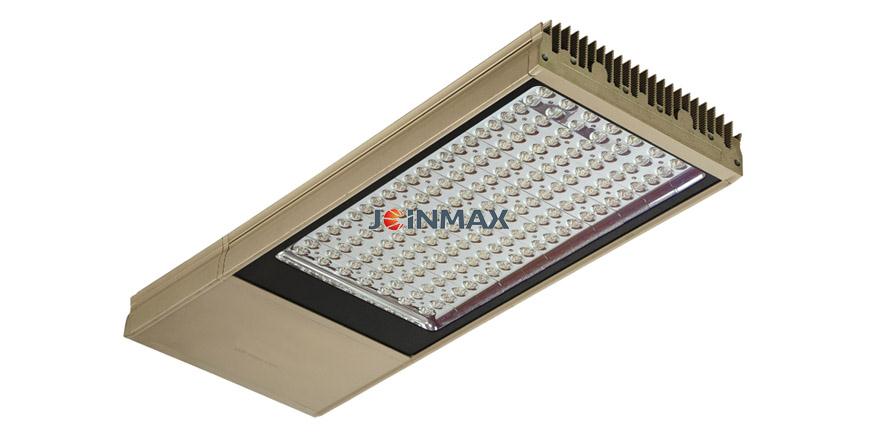

1. JM11 series LED lamp employs large-power ultra-high brightness LED as light source with the characteristics of high photosynthetic efficiency, long working-life.
2. Equipped with patented twice optics lens and the batwing-shape horizontal grading, high light transmittance, high transmittance rate and good endurance.
3. Employ advanced structure design and heat analysis stem design, high-density pressed aluminum shape with large heat-radiation area and good conductivity.
4. Employ general Ф60mm standard overarm installation with adjustable installation elevation in a range of 0-30 degree.
5. Employ high-power outdoor LED drive power and highly-effective transitional board with built-in macro-processor and adjustable road lamp light.
6. To comply with LED road lamp management system and long-distance smart management available
?技術分類Technical?Classification | 項目規格Item | JM11-314001RM | JM11-308401RM | JM11-305601RM |
電氣性能Electrical?Properties | 燈具功耗Power?consumption | 180W | 110W | 75W |
供電電壓Input?voltage | AC100-240V，50-60Hz | |||
功率因數Power?factor | PF>0.95 | |||
光學性能Optical?Properties | 光通量Luminous?flux | 大于16200lm | 大于9900lm | 大于6750lm |
光源色溫Color?temperature | 5700K | |||
顯色指數Color?rendering?index | CRI>70 | |||
光效Light?Efficacy | 大于90?lm/W?Over?90?lm/W | |||
配光曲線?Light?Distribution | 120°X?60°?矩型光斑??120°X?60°?rectangle?light?spot | |||
平均照度?Average?Illumination | 高度10米?10?Meters?High：>28?lux | 高度8米：>26?lux | 高度6米：>25?lux | |
高度12米：>20?lux | 高度10米：>16?lux | 高度8米：>15?lux | ||
照射范圍?Lighting?Scope | 高度10米：34X12?m2 | 高度8米：?27X9.5?m2 | 高度6米：21X7.0?m2 | |
高度12米：41X14?m2 | 高度10米：34X12?m2 | 高度8米：27X9.5?m2 | ||
控制性能Control | 控制方式?Control?Mode | 遠程無線+電力載波?Remote?wireless?control?and?power?line?carrier | ||
亮度等級?Brightness?Level | 100級?100?levels | |||
結構性能Structure | 長x寬x高?Dimension(L*W*H) | 756X320X188?mm? | 577X320X188?mm? | 498X320X188?mm |
燈體重量?Weight | 18Kg | 14Kg | 11Kg | |
安裝方式?Installation?Method | ф60mm標準橫臂，仰角可調?Standard?crossarm,?adjustable?elevation?angle | |||
燈體材料Material | 擠壓鋁+鋼化玻璃Die-casting?aluminium?and?hardened?glass | |||
表面顏色Surface?Color | 金黃色?Gold | |||
工作溫度Work?Temperature | -30℃～50℃ | |||
工作濕度Work?Humidity | 0～95% | |||
使用壽命Life?span | 50000?hour（@70%） | |||

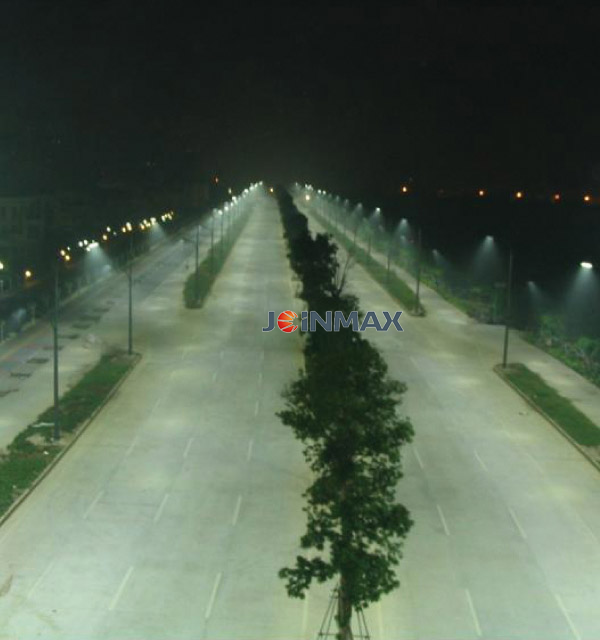

使用環境Work?Environment | 室外道路照明Outdoor | |||
防護等級Protective?Grade | IP65 | |||
-
