| 技術規格 Technical Parameter | ||
| 技術分類Technical Classification | 項目規格Item | 參數Parameter |
| 電氣性能Electrical Properties | 供電電壓 | AC90-260V |
| 最大功耗Max Power Consumption | 22W? | |
| 光學性能 Optical Properties | 光源組成Lamp | 3W/顆?? 8顆3W/pcs 8pcs |
| 光通量Luminous Flux | 881lm±5%、1077lm±5% | |
| 顯色指數Color Rendering Index | CRI﹥75? | |
| 色溫Color Temperature | 3000K/4000K/6000K | |
| 光效Luminous Efficacy | 40m/W ﹑49m/W | |
| 光束角Beam Angle | 15°/ 35°/45°/60° | |
| 光通維持率Luminous maintenance rate | 35000hour (﹫70%) | |

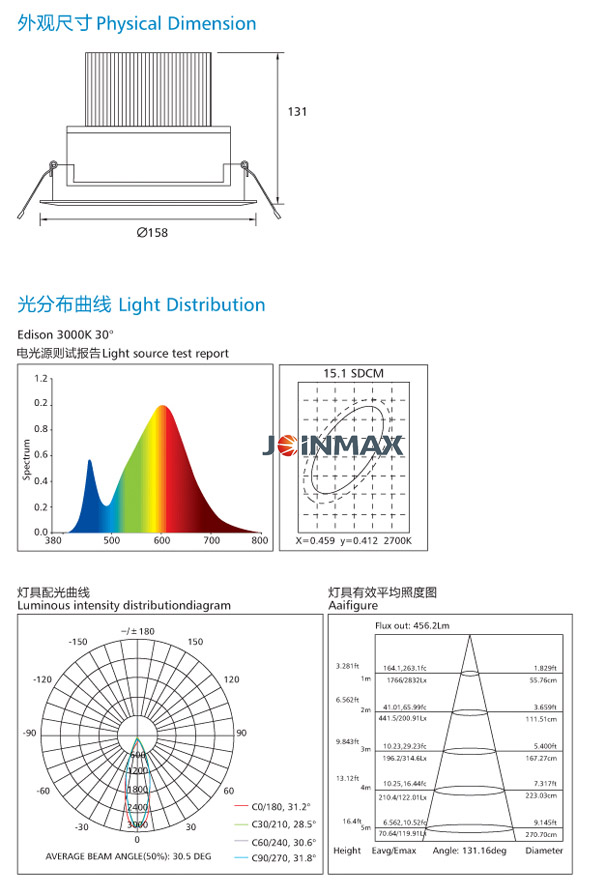

| 結構性能Structure | 尺寸（長*寬*高）Dimension (L*W*H)? | ?158*H131mm |
| 開孔尺寸 | ?143mm | |
| ?燈體材料Material | 車鋁Aluminium | |
| 表面顏色Surface Color | 銀色/白色Silver/White | |
| 防護等級Protection Rating | IP43 | |
| 工作溫度 Work Temperature | －20°C－50°C | |
| 工作環境濕度Work Humidity | 0-90% | |
| 使用環境Work Environment | 室內干燥環境Indoor Dry Environment | |
| 安全性能Safety | 認證Certificate | CE, RoHS |
| 型號對照表 Model List | ||
| 供電方式????? Input Voltage | 發光顏色 ?LED Color | 產品編號 Model |
| DC90-260V | 2800-7000K | JZ03-300801-034 |
-
